Description

Software module for editing calibrations of Magneti Marelli 9GV ECU files fitted in VAG 1.6 CFZA petrol engined vehicles.

The following maps are available for editing:

  • Idle engine speed in all available modes
  • Friction and drag torque control, indicated torque control, relative and requested torque at different conditions, full load torque limitation, slow down torque, power limit torque and more…
  • Knock control sensitivity, spark advance correction, maps to detect good/bad fuel
  • Rev limiter (engine speed limiter)
  • Exhaust gas model: temperature and pressure calculation and corrections
  • Calculation of air mass, compression ratio, air density values, correction of airmass
  • Spark advance, base, optimal, minimal angles, correction of advance
  • Target lambda in part load, full load, WOT mode, combustion efficiency by lambda
  • Throttle valve target position maps, mechanic law of throttle valve, maximal request of position

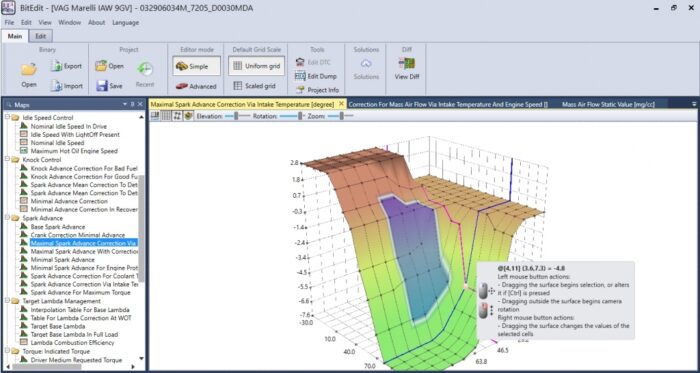

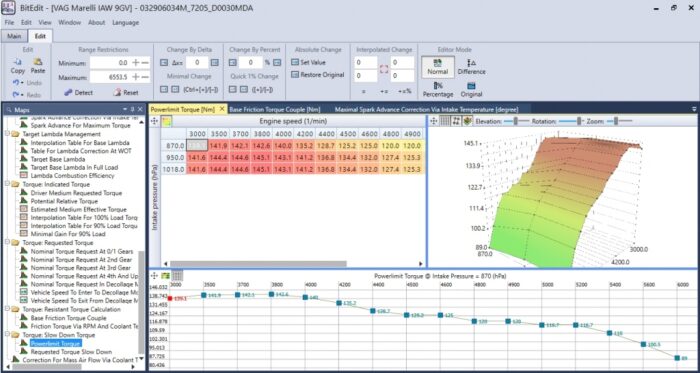

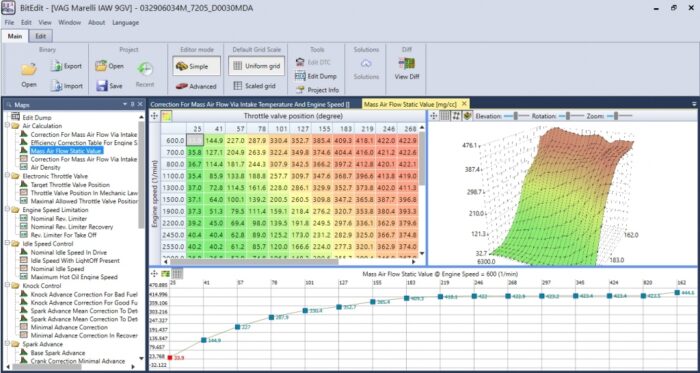

See screenshots for more info!

BitSoftware Senselock USB dongle is required in order to use this software!



Please note, this product is an map editor only and does not allow you to read/write the ECU, for reflashing software >>click here<<

For full info please view the product page here.
