Scanmatik 3 PRO – J2534 PassThru

Scanmatik 3 PRO – J2534 PassThru

£330.00 Exc. tax

In stock

Scope of delivery:

  • Scanmatik SM3-PRO interface
  • 16 pin OBD2 cable with AUX
  • 12V cigar lighter power cable
  • Carry case
  • Software and drivers package (download)
  • USB A-B cable

Suitable for use with BitBox MG1/MD1 BENCH module and PCMFlash Modules 53/71!

In stock

SKU: SM2-PRO Categories: , ,

Description

Scanmatik 3 is a newest professional scan and reprogramming tool, designed working with electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

Scanmatik SM3 Pass-Thru adapter is a successor of SM2Pro adapter with CAN-FD and DoIP protocols. It offers widest support for SAE J2534-1/2 and TMC RP1210 standard features required by OEM vehicle diagnosis & reprogramming software, vehicle tuning and ECU reflash software like PCMflash, BitBox, Combiloader, MDFlasher etc. Exclusive per-software features was implemented to extend vehicle and function coverage (Ignition State Emulation (VAG ODIS), KLINE multiplexing (MB-DAS) and so on. J1850 VPW/PWM, Chrysler SCI interfaces were implemented to support legacy vehicles.

Note: SM2Pro production has ended 12.2024, it will continue to get software and feature updates.


The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.

Specifications adapter SM2-PRO

  • 13X ISO-9141-2/ISO-14230-2 (K-LINE)/Chrysler SCI channels multiplexed to J1962 OBD port pins [1,2,3,6,7,8,9,10,11,12,13,14,15].
  • 1X J1850 VPW/PWM Channel
  • 5X CAN2.0/CAN-FD Channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10
  • 1X Single Wire CAN (GM)
  • 1×10/100BASE-TX channel (DoIP)
  • Programming Voltage (FEPS) generator (5-24V) multiplexed to OBD Port pins [6, 8, 9, 11, 12, 13, 14]
  • Separate AUX output for Programming Voltage to DB-25 (requires AUX-type Main cable to convert to banana-jack)
  • Wireless std: IEEE 802.11b/g/n
  • Adapter dimensions (L x W x H): 97×75×22mm

Optional BENCH/BOOT cable with automatic power control suitable for using Scanmatik.

Compatible BitBox MG1/MD1 BENCH module and PCMFlash modules 53/71.

The adapter has reverse polarity protection.
Power supply LED indicator (Green)
Power supply for ECU LED indicator (Red/Orange)
Boot mode LED indicator (Blue)
Automatic power supply switching for ECU via L-line
Automatic generation of BOOT/CNF (for PCMFlash module 53)

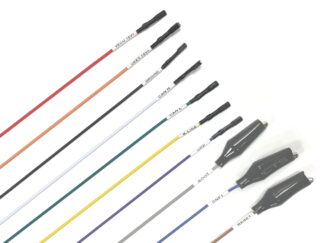

NEW: Connection wires are now individually labelled to avoid wrong connections.

    • Red 12V+
    • Black GND
    • White CAN H
    • Green CAN L
    • Pink or Yellow with Green insulation K-Line
    • Yellow GPT1
    • Orange GPT2
    • Blue-CNF1 (1K Ohm)
    • Grey BOOT1 (1K Ohm)
    • Brown BOOT2 (1K Ohm)
    • Purple VPP
