Software module for editing calibrations of Chrysler/Dodge/Jeep and Fiat vehicles with Continental GPEC2 ECUs based on MCU Motorola MPC5566 with internal 3MB Flash memory .
The following maps are available for editing:

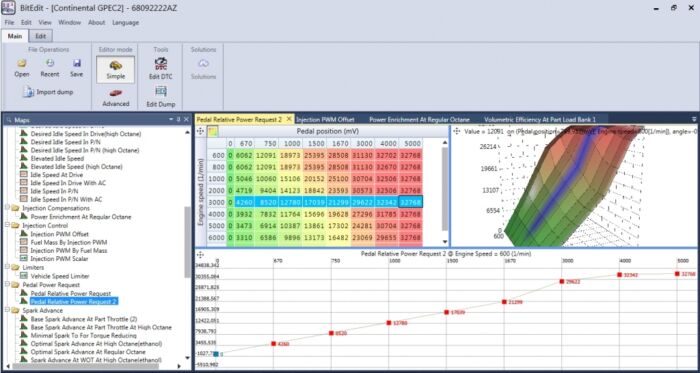

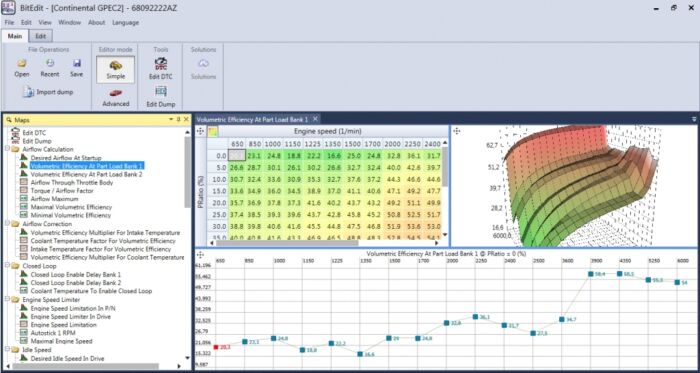

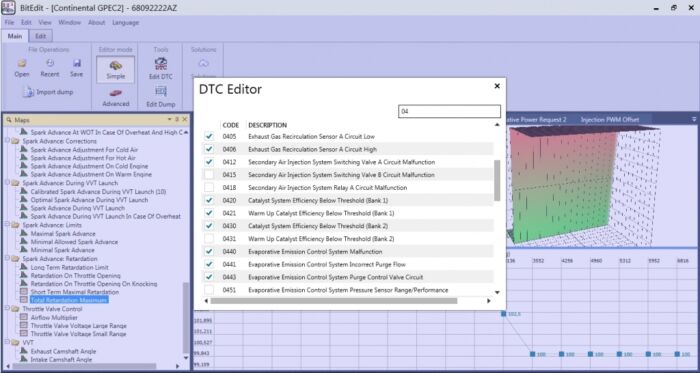

Volumetric efficiency calculation with multipliers and corrections, desired airflow at startup, airflow limiters, closed loop control and delays, idle speed in different modes, injection compensations, injection PWM offset, PWM scalar, pedal power request, spark advance at part load, spark advance at WOT, optimal spark advance, spark advance adjustments for coolant and intake air temperature, spark advance during VVT launch, spark advance limitation, knock retardation control, throttle valve control, VVT intake and exhaust camshaft angles, engine speed limitation in drive and P/N, vehicle speed limitation (when found). DTC mask available.
A BitSoftware Senselock USB dongle is required in order to use this software!
Please note, this product is an map editor only and does not allow you to read/write the ECU, for reflashing software >>click here<<
