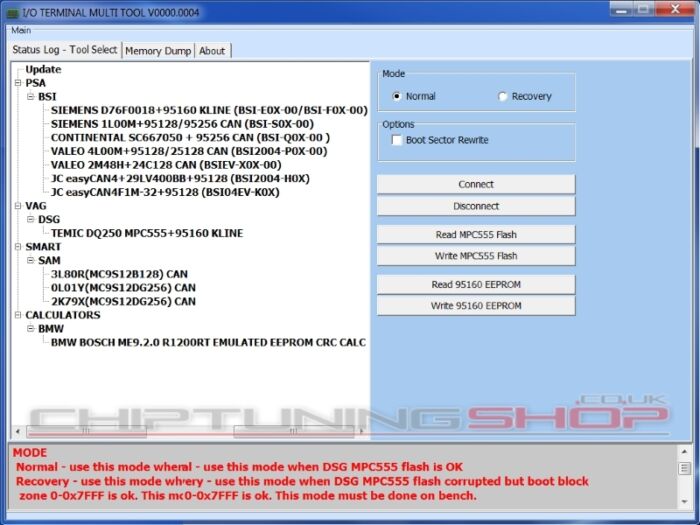

Description

This plugin can offer functions that normally would normally require the ECU to be opened and a BDM/Boot programmer connected, however it can accomplish these procedures without opening the ECU and in some cases all from OBD!

Using this tool you gain full control of the ECU’s memories.

You can read/write eeprom and internal/external flash memories (where available).

All operations are done over K-line or CAN bus.



Please note, this product is a software plugin, it can only be used with the I/O Terminal Tool interface. If you do not have the interface, you can add it in the product options.

  1. ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  2. ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  3. ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  4. ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY.
  5. ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  6. ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  7. DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD).
  8. DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD).
  9. DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD).
  10. ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD) .
  11. ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD) .
  12. ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  13. ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  14. ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY.
  15. ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD) .
  16. ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD)
  17. EEPROM DUMP VIEWER,EDITOR.

Please note, cloning on these DELCO ECUs only works if the source and target ECUs have the same HW/SW versions.

  1. TCM  6T30,6T35,6T40,6T45,6T50 FULL AM29BDD160GB FLASH R/W. CAN (OBD).
  2. TCM  6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

  1. EPS  BOSCH 70F3187+95080   70F3187 FLASH R/W  95080 EEPROM R/W. CAN (OBD).
  2. EPS  BOSCH 70F3485   70F3485 FLASH R/W  DATAFLASH R/W. CAN (OBD).

  1. PIM/TPIM  ACDELCO S95.  1xMPC5566 FLASH R/W, 3xMPC5565  FLASH R/W. CAN (OBD).

  1. OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM   93C86 R/W ,show PIN, reset PIN. 70F3238 FLASH R/W.
  2. OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM   93C86 R/W,show PIN, reset PIN. 70F3379 FLASH R/W.
  3. OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
  4. OPEL DELPHI BCM 70F3634 CAN . 70F3634 DATA & PROGRAM FLASH R/W ,show PIN, reset PIN.
  5. OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
  6. OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W.  EEPROM 24C16 R/W show PIN,reset,change odometer,change VIN.
  7. OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN,reset,change odometer,change VIN.
  8. OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN,reset,change odometer,change VIN.
  9. OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN,reset,change odometer,change VIN.

Vehicles equipped with these BCM modules:

OPEL: Corsa D, Meriva B,  Insignia, Astra J, Zafira C, Corsa E, Adam, Cascada, Ampera, Mokka, Astra K and Insignia B. Also these BCMs can be found on many other GM vehicles.

  1. FORD CONTINENTAL/SIEMENS BCM   4L91N/0L01Y (9S12DT256) CAN . 9S12DT256 EEPROM   R/W , 9S12DT256 FLASH R/W.
  2. FORD CONTINENTAL/SIEMENS BCM   4L00M (9S12DP512) CAN . 9S12DP512 EEPROM  R/W, 9S12DP512 FLASH R/W.
  3. FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN . 70F3384/70F3637 DATA & PROGRAM FLASH R/W .
  4. FORD CONTINENTAL BCM MPC5607 CAN . MPC5607 DATA & PROGRAM FLASH R/W.
  5. FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
  6. FORD DELPHI BCM R5F64524/R5F64525.  R5F64524/R5F64525 DATA & PROGRAM FLASH R/W.
  7. FORD LEAR BCM SPC560B64+95320.  SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
  8. FORD LEAR BCM MC9S12XEP768.  MC9S12XEP768 DATA & PROGRAM FLASH R/W.
  9. FORD LEAR BCM V2 MC9S12XEP768.  MC9S12XEP768 EEPROM+DATA FLASH & PROGRAM FLASH R/W.
  10. FORD TEMIC BCM  MC9S12DG256.  MC9S12DG256 EEPROM + PROGRAM FLASH R/W.
  11. FORD TEMIC BCM  MC9S12XD256.  MC9S12XD256 EEPROM + PROGRAM FLASH R/W.

Requires Special PSA BSI OBD Cable!

  1. Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00) – EEPROM 95160 R/W , show PIN
  2. Siemens 1L00M+95128/95256 CAN (BSI-S0X-00) – EEPROM 95128/95256  R/W, show PIN, 9S12DP512 FLASH R/W
  3. Continental SC667050+95256 CAN (BSI-Q0X-00) – EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W
  4. Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00) – EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W
  5. Valeo 2M48H+24C128 CAN (BSIEV-X0X-00) – EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W
  6. Valeo SC667152+95256 CAN (BSI-N0X-00) – EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W
  7. Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X) – EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W
  8. Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X) – EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W
  9. Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX) – EEPROM 95128 R/W, show PIN,SPC560B60 FLASH R/W

  1. FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3237 FLASH R/W.
  2. FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
  3. FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM FLASH R/W ,show PIN, show KEY preparartion data.
  4. FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
  5. FIAT DELPHI BSI 70F3556  CAN . 70F3556 DATA & PROGRAM FLASH R/W.
  6. FIAT DELPHI BSI 70F3557  CAN . 70F3557 DATA & PROGRAM FLASH R/W.

  1. Ford and Opel Easytronic Bosch 29F200 Kline – Read/Write 29F200BB Flash, Read/Write 24c16 Eeprom
  2. Ford and Opel Easytronic Bosch 29F400 Kline – Read/Write 29F400BB Flash, Read/Write 24c16 Eeprom
  3. VAG Temic DQ250 MPC555 Cxx Kline – Read/Write MPC555 Flash, Read/Write 95160 Eeprom

  1. 3L80R (MC9S12B128) CAN – EEPROM R/W, FLASH R/W
  2. 0L01Y (MC9S12DG256) CAN – EEPROM R/W, FLASH R/W
  3. 2K79X (MC9S12DG256) CAN – EEPROM R/W, FLASH R/W

In order to R/W you need know the PINCODE! This tool can NOT retrieve the PINCODE

VOLVOCEMLIC000002 ACTIVATION modules list and functions

  1. VOLVO DELPHI CEM L M30835F+93C86. M30835F   PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.
  2. VOLVO DELPHI CEM L M30855F+93C86.  M30855F  PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

In order to R/W you need know the PINCODE! This tool can NOT retrieve the PINCODE

VOLVOCEMLIC000001 ACTIVATION modules list and functions

  1. VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.
  2. VOLVO DELPHI CEM R5F64524/R5F64525.  R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
  3. VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
  4. VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

WEBASTOLIC000001 ACTIVATION modules list and functions

  1. FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINENTAL 9S12DG256.  9S12DG256 FLASH R/W, EEPROM R/W.

FOMOCOKVMLIC000001 ACTIVATION modules list and functions

  1. VOLVO P3/FORD/JAGUAR  KVM (Keyless Vehicle Module) SIEMENS/CONTINENTAL 9S12DG256.  9S12DG256 FLASH R/W, EEPROM R/W.

  1. CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512  FLASH+EEPROM R/W, 95640 EEPROM R/W.  (CAN  11-bit system) .
  2. CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512  FLASH+EEPROM R/W, 95640 EEPROM R/W.  (CAN  29-bit system) .

Requires HW9 Interface, or modification to older HW in order to be used!

  1. Magneti Marelli with Freescale MCU 3K91D,1k79X (R/W EEPROM SHOW PIN)
  2. Magneti Marelli with NEC MCU 70F3237,70F3378 (R/W EEPROM SHOW PIN)
  3. Siemens Continental Freescale MCU 9S12DG128  (R/W EEPROM SHOW PIN)
