Tricore Boot + VAG OBD Unlock Module

Tricore Boot + VAG OBD Unlock Module

£1,500.00 Exc. tax

Serial Number

* This plugin is only available for MPPS tools using the latest hardware, if you are unsure please contact us with your serial number. *

SKU: MPPS-TB Category:

Description

This module adds support for Tricore Bootloader functions to existing MPPS tools.

Features:

  • TPROT / DS check feature, for testing if TPROT is active without opening ECU
  • Auto detects ECU and processor type. No need to select from list, everything is automatic!
  • Read/Write of all memories Eeprom, Irom, Xrom (where possible)
  • Patch function for OBD Flashing of TPROT ECU’s in boot mode (supports only VAG at the moment)
  • Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.
  • Checksum Correction supported for Bosch MEDC17 irom and eeprom.
  • Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom
  • NEW! Support for Bosch Service Mode to read password on ECUs using TP12+
  • NEW! Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

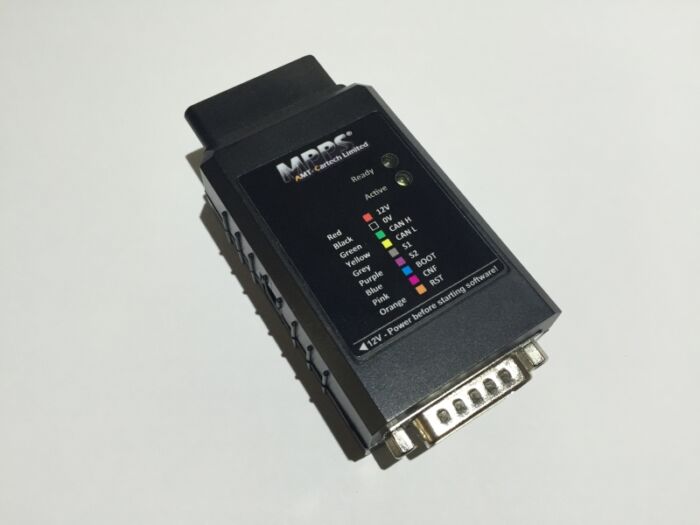

Includes the software module, TPSG tricore interface, cable set, power supply and carry case.

MPPS_Boot_SW
