Software module to edit calibrations of diesel Mazda vehicles with SkyActiv-D engines and fitted with Denso ECU.

The following maps are available for editing:

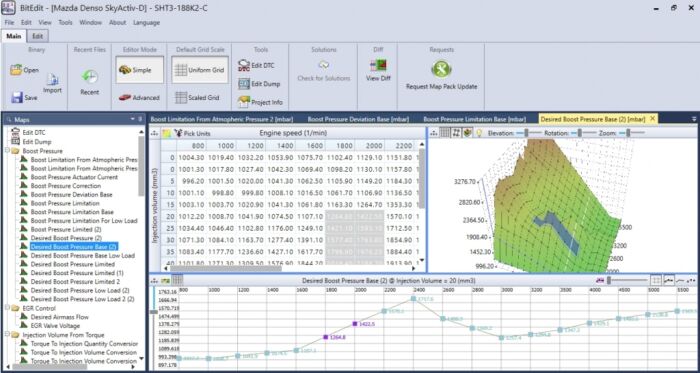

  • Boost control: boost pressure limitation from atmospheric pressure, boost pressure limitation, desired boost pressure, boost pressure correction, boost pressure actuator current
  • EGR Control: desired airmass flow, egr valve voltage
  • Injection volume: torque to injection volume conversion for different modes, injection volume limitation, smoke reducing limitation, injection volume limiters for system errors, power limitation

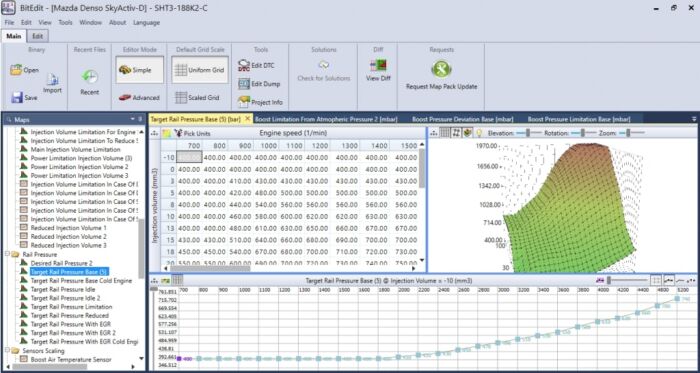

  • Rail pressure: desired rail pressure, rail pressure low load, limitation of rail pressure
  • Sensors scalings: exhaust temperature sensors, boost air temperature, intake air temperature, coolant temperature, mass air flow, oil temperature
  • Start of injection: start of main injection base and corrected
  • Torque management: injection volume to torque conversion, requested torque, maximal torque, power limitation by torque, torque limitation in case of system error

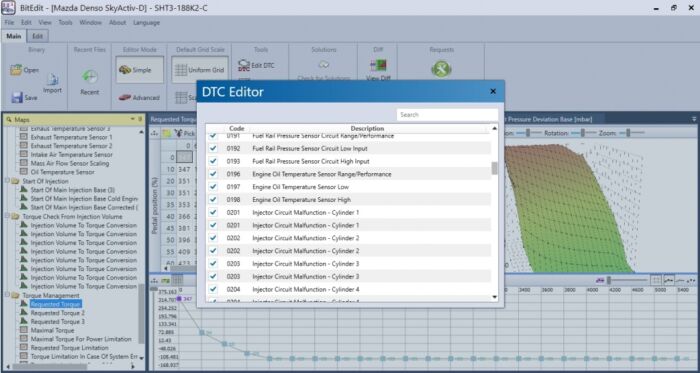

  • DTC mask editor

See screenshots for more info!

BitSoftware Senselock USB dongle is required in order to use this software!


For full info please view the product page here.
