Description

Software module for editing calibrations of Kefico CPEGD2/CPGDSH2 ECUs of petrol normal aspirated and turbocharged Kia/Hyundai.

The following maps are available for editing:

Air charge control: Mass air flow pulsation correction, target air filling

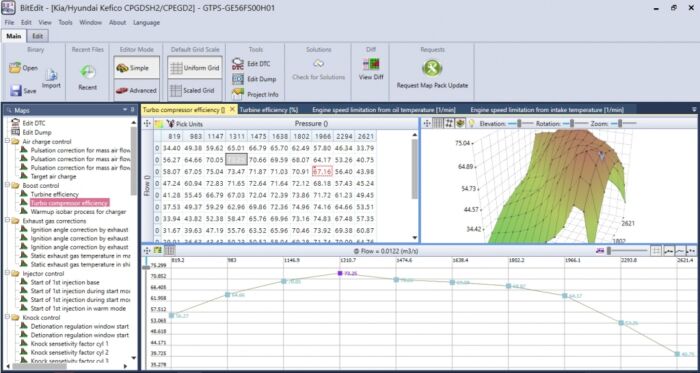

Boost control: Turbine and compressor part efficiency, warm up isobar process
Exhaust gas: Ignition angle correction by EGT, static exhaust gas temperature
Injector control: Start of 1st injection, start of 1st injection during start, start of 1st injection in warm mode
Knock control: Knock sensetivity, detonation regulation window, spark advance retardation step, detonation measurement window
Limiters: Engine speed limitation from coolant, oil, intake temperatures
Rail pressure: Target rail pressure at part and full loads, rail pressure limiters and maximal value

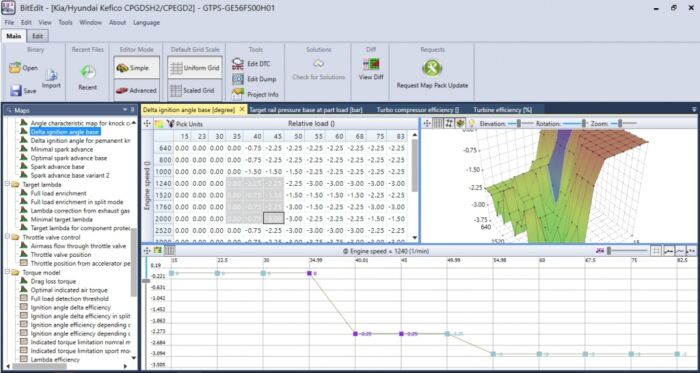

Spark advance: Angle characteristic map for knock correction, delta ignition base, minimal spark advance, delta ignition for overboost protection, optimal spark advance, spark advance base
Throttle valve control: Airmass flow through throttle valve, throttle valve position, throttle position from pedal position direct law
Torque model: Drag loss torque, optimal indicated torque, full load detection threshold, ignition angle efficiencies, lambda efficiency, maximal indicated torque in normal and sport modes, minimal efficiency
Torque request: Requested torque on all gears and modes, inverse pedal position map for torque checkout
VVT: Intake camshaft position at catalyst heat, intake camshaft position base, intake camshaft position warm engine
Warm up: Warm up correction for combustion, weighging factor for combustion for both temperatures, temperature correction factor for throttle

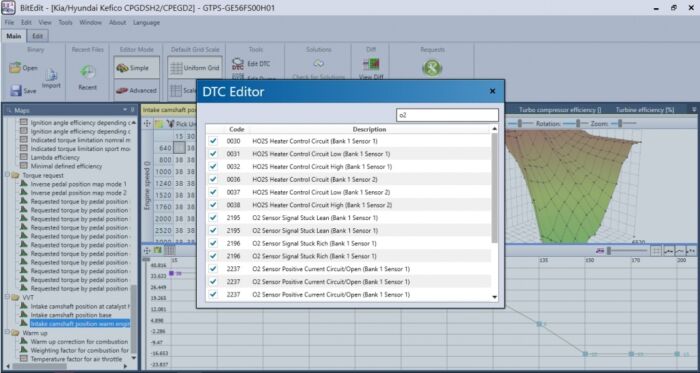

DTC mask editor.



BitSoftware Senselock USB dongle is required in order to use this software!

For full info please view the product page here.
