Software module for editing calibrations of Honda/Acura Keihin ECUs fitted to Petrol 2.3 Turbo vehicles. ECU is based on MCU Renesas SH7058 with 1Mb of internal flash memory.

The following maps are available for editing:

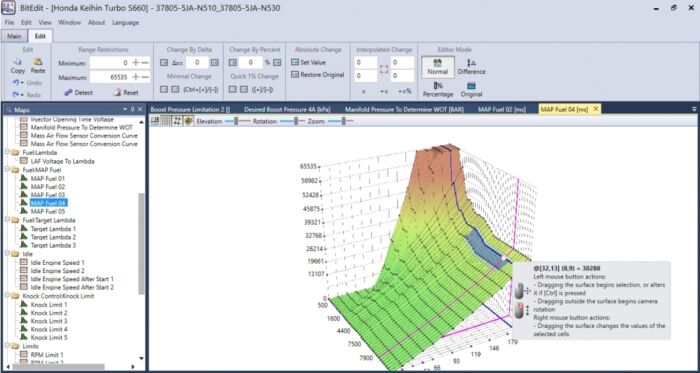

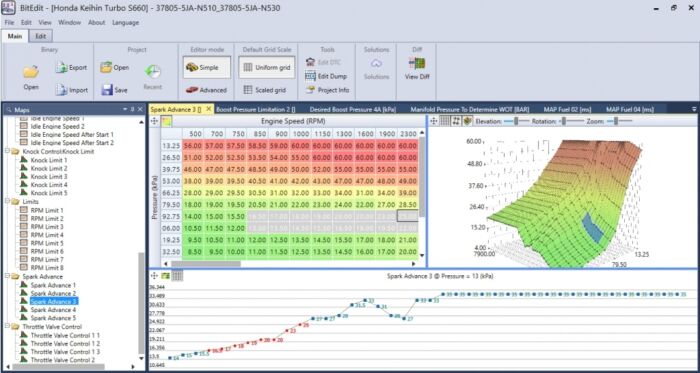

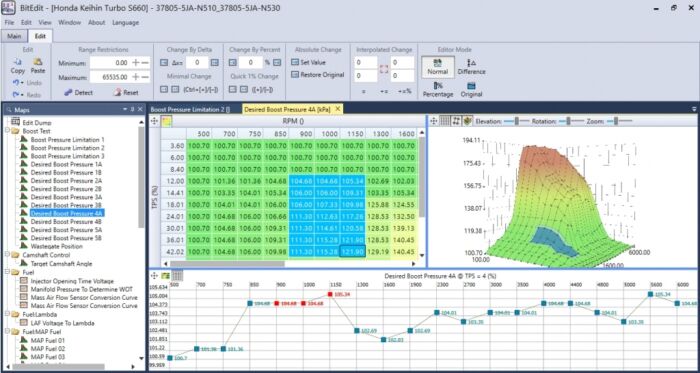

Desired boost pressure, camshaft angle control (VTC), Closed loop lambda, injector opening time, WOT determining mode, fuel compensations for temperature, target lambda at High VTEC and Low VTEC, idle speed control, Knock limits, knock sensetivity, knock retardation, spark advance at High VTEC and Low VTEC, throttle valve control, VTEC control and also REV limiter. See screenshots for more info!

BitSoftware Senselock USB dongle is required in order to use this software!


For full info please view the product page here.
