AMT BDM

£750.00 Exc. tax

MASTER tool, reads/writes open BIN files.

This tool has no annual fees. Updates and technical support are free!

Options

SKU: AMT-BDM Categories: ,

Description

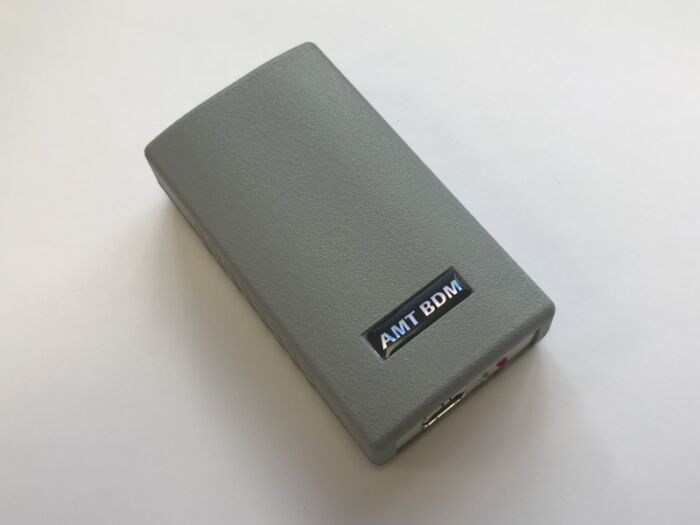

AMT BDM is a universal BDM programmer for ECUs using the Motorola MPC5xx processor.

The software automatically detects the processor and memory types, which simplifies the process for the user. Access to the available memories is then granted, the software allows you to individually read / write the desired data.

Included with the AMT BDM programmer are the following probes:

  • BDM1 – 10 pin Siemens probe (port pitch 1.27mm) – Siemens SID201, SID202, SID203, SID204, SID206, SID803, MS45, MSS65, MSV70, MSS70. Bosch ME9.7, EDC7.
  • BDM2 – 10 pin Delphi probe (port pitch 2.54mm) – Jaguar/Ford 2.0TDCI.
  • BDM3 – 14 pin Bosch probe (port pitch 2.54mm) – All Bosch.
  • BDM4 – 10 pin Siemens/Marelli probe (port pitch 1.27mm) – Marelli, Siemens PPD, Siemens MSS65.
  • BDM7 – 10 pin Delphi probe (port pitch 2.54mm) – Mercedes Benz / Kia / Ssangyong Delphi DCM3.2.
AMT BDM has no annual fees, or subscriptions. Updates are free!



Some ECUs may require power via ECU pins, no wiring or power supply is included, however you can add these in the product options if required.
This tool is available as a master only. Checksums are not included, so you will require a third party checksum program or MPPS users can use the checksum utility available in the MPPS software (where supported).
